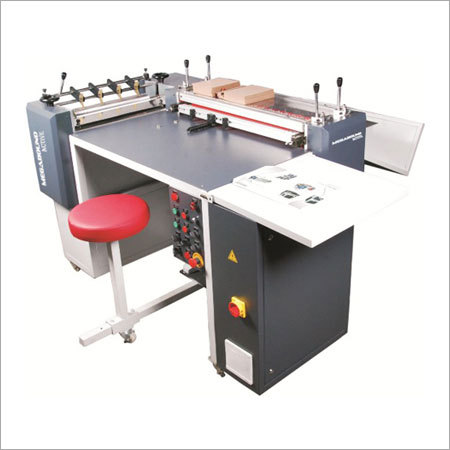

Case Maker Machines

Case Maker Machines
Case Maker Machines
Product Code : Active
Brand Name : Megabound
Product Description

With the support of our highly experienced and skilled workforce, we are renowned as one of the well equipped manufacturers, suppliers and exporters of Case Maker Machines. These are devised in our state-of-the-art manufacturing unit by utilizing high grade raw materials and advanced technology. These machines are widely used for printing and binding purposes. These Case Maker Machines are broadly acknowledged for their sturdy construction,  minimum downtime and easy operation.

Further Details

CASEMAKER ACTIVE

          All the operations are executed by the operator sitting down in front of the machine, The operator passes the paper into the gluing unit. Under his seat are place n.02 foot Switches, The 1st Switch the coming out of some paper references placed on the suction plane, to get the exact placing of the paper. The 2nd Switch the vacuum system and coming down of the board reference device on the suction plane.

The operator, after the gluing, laces the boards into the board device, Obtaining the maximum accuracy. Then, he pushes the product towards the turning in of the 4 sides in tow times. With the 1st operation are executed n.02 sides, then the product comes back on the suction plane, the operator starts the 4 corners by hand turns the product and pushes it again into the turning in unit for execution of the remaining 2 sides and for the total processing of the whole product. At this point the working process is finished and the final product comes out and it is collected into and inclined plane, placed behind the turning in unit. Window pasting and folding also possible.

TECHNICAL DATA

Min. case size              100mm x 160mm             Power                          2 Kw., 3 Phases

Max. case size              450mm x 800mm             Dimensions                 H 1075mm x L1600mm x W 1200mm

Paper thickness           60gsm - 170gsm                Weight                         600Kgs.

Board thickness           0.5mm - 5mm                   Gluing System             Bottom

Turning-in width        15mm - 30mm                  Man power                  One

Production                   300 cases/hr                      Glue                              Hot / Cold (Optional)

Materials                      Paper, Laminated Paper, Plastic coated, Paper, Clothes etc.,
